spiral freezer belt for freezering food processing
14)radius grid belt for cooling bread , ice cream , shramp radius grid belt
The RA radius belt is a highly usable conveyor belt. The belt has been designed for a great many applications, constructions and process conditions. The belt is eminently suitable for cooling or freezing products such as snacks, bread, pastry, vegetables, potatoes, fish and meat, as well as for blanching vegetables or proofing dough. The belt is used in radius systems, spiral towers as well as in curved and straight conveyors.

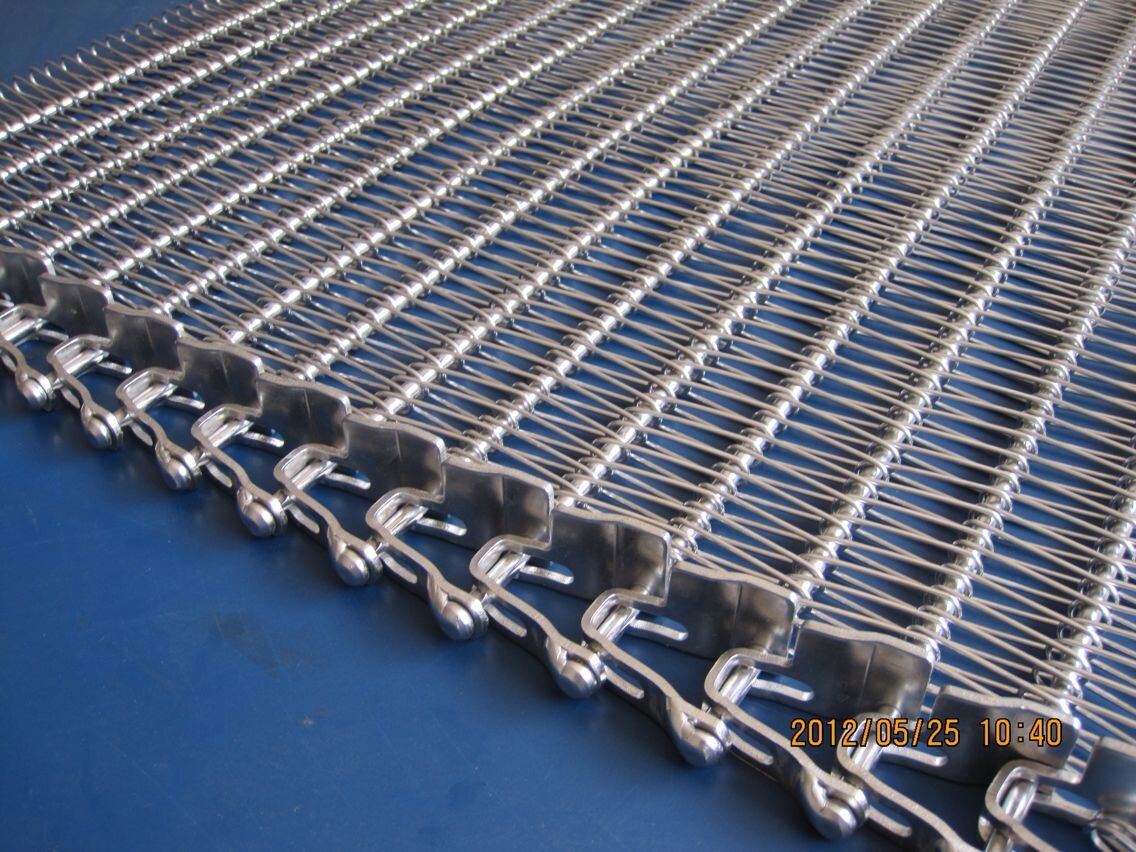

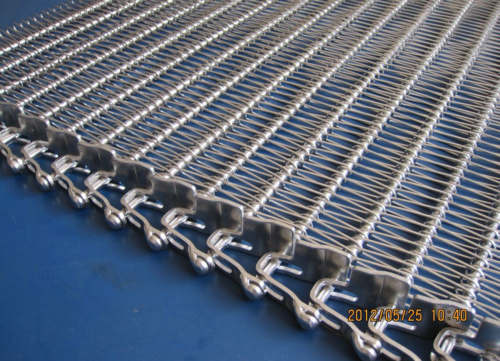

The RA radius belt is constructed of cross rods with chain links on both sides and, in most cases, is provided with balanced weaved spiral mesh for product support. The thickness of the spiral wire and the spiral pitch can be chosen at will and allow the belt to give optimal product support. The belt can also be provided with reinforcing links, extra plate links for product conduction, or with flights.
The belt can be made in every width between 350 and 1,500 millimetres. Belts with widths smaller than 350 mm, or greater than 1,500 millimetres and belts with unilateral spiral wire are made on demand.
The Standard RA radius belt has many different versions to optimise your choice and is available in:
1 different pitches: 19,05 mm (3/4”) and 27,4 mm (1”)
2different strengths: - normal (2 mm) chain link type: RA - NB
heavy duty (3 mm) chain link type: RA -VB
heavy duty chain link with double
reinforcing plate links type: RA –VP
2different strengths: - normal (2 mm) chain link type: RA - NB
heavy duty (3 mm) chain link type: RA -VB
heavy duty chain link with double
reinforcing plate links type: RA –VP
different ratios between the belt width and the rotating radius:
rotating radius = 1,7 x belt width or rotating radius = 2,2 x belt width
rotating radius = 1,7 x belt width or rotating radius = 2,2 x belt width
螺旋速凍網帶簡介：螺旋速凍網帶螺旋網帶專門為食品行業的多層螺旋設備設計，但也很適用于其他需要左轉彎和右轉彎的應用。
螺旋網帶應用在面制品的發酵，冷卻和速凍，還有從比薩到魚棒的很多產品的速凍。柔軟面制品通常需要網條的支撐，其他產品也許更適用于螺旋鏈軸或者螺旋長城網。網帶可以加裝加強鋼片，邊緣擋板或者橫向擋板。
螺旋網有很多版本可以選擇，具體如下：
節距：19.05mm, 25.4mm, 27.25mm, 27.4mm, 30mm,31.75mm
加網絲或者不加網絲
不同的旋轉半徑：旋轉半徑=1.7 x網寬，旋轉半徑=2.2 x網寬，旋轉半徑=1.1 x網寬
材料：304和316不銹鋼
Spiral mesh belt is designed for the food industry, but it is also very suitable for the application of left turn and right turn.
Spiral net belt used in flour products of fermentation, cooling and frozen and frozen fish sticks of many products from Pisa to. Soft flour products usually need a net support bar and other products may be more applicable to the helix axis or spiral wall network. Net belt can install reinforcing steel sheet, the edge baffle or transverse baffle.
There are many versions of the spiral network can be selected, as follows:
Pitch: 19.05mm, 25.4mm, 27.25mm, 27.4mm, 30mm, 31.75mm,
With or without wire mesh
Different rotation radius: the radius of rotation x =1.7 net width, the rotation radius x =2.2 net width, the rotation radius x =1.1 net width
Materials: 304 and 316 stainless steel
